Customer Review Videos
Real installation and test videos from YouTube creators.
Tired of Weak Climbs & Dead Batteries Mid‑Game?


Intelligent communication expansion, saying goodbye to the worry of mileage


How to make the size of the battery smaller? This is a technical issue!


Specs
Capacity & Range
Nominal Voltage
51.2V
Capacity
100Ah
Energy
5.12kWh
Mileage (Est.)
50 miles
Charge & Discharge
Charge Voltage
58.4V
Max Charging Current
60A
Max Continuous Discharging Current
200A
Max 10s Discharge
400A
Max 3s Discharge
1000A
Discharge Cut-off Voltage
44.8V
Max Load / Inverter Power
10.24kW
Cell & BMS
Cell Type
Grade A Prismatic
BMS Solution
MOSFET
Internal Resistance
≤20mΩ
Cycle Life
≥4,000 Cycles
Smart Features
Communication
Bluetooth(App) / CAN / RS485
Display Type
Round Screen
Heating Function
No
Dimensions & Protection

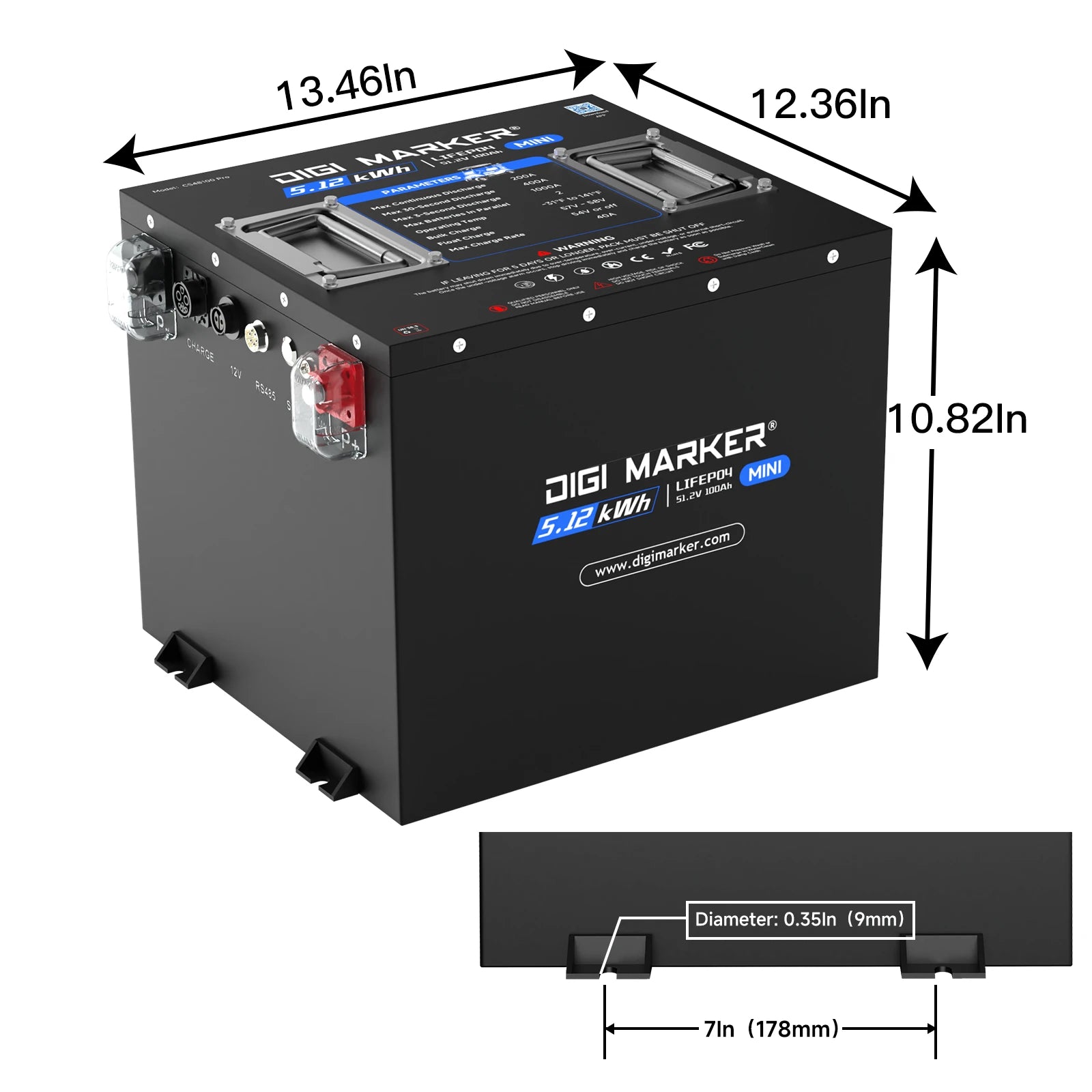

Dimensions (W x H x D)
13.5×12.44×10.47 in
Weight
43KG / 94.8lbs
Terminal Type
M8 Stud
Waterproof Class
Battery IP65 / Charger IP67
Operating Temperature Range
Charge: 0°C~45°C
Discharge: -35°C~65°C
Low Temp Discharge: -35°C
Discharge: -35°C~65°C
Low Temp Discharge: -35°C
Safety & Certification
Safety Features
BMS, Over Charge/Discharge, Low/High Temp Cut-off, Over Current, Short Circuit pre-charging, pre-discharging, 400A fuse

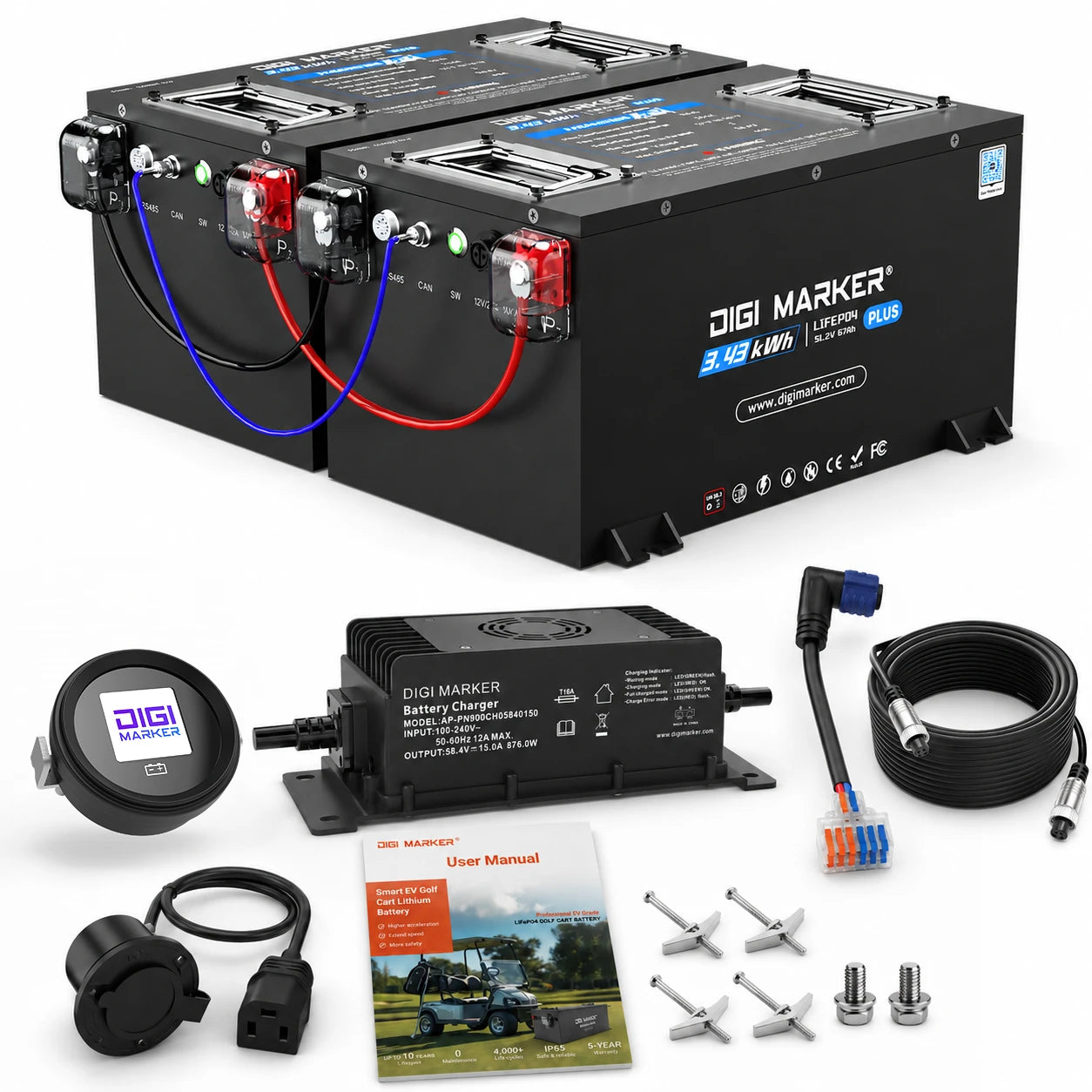

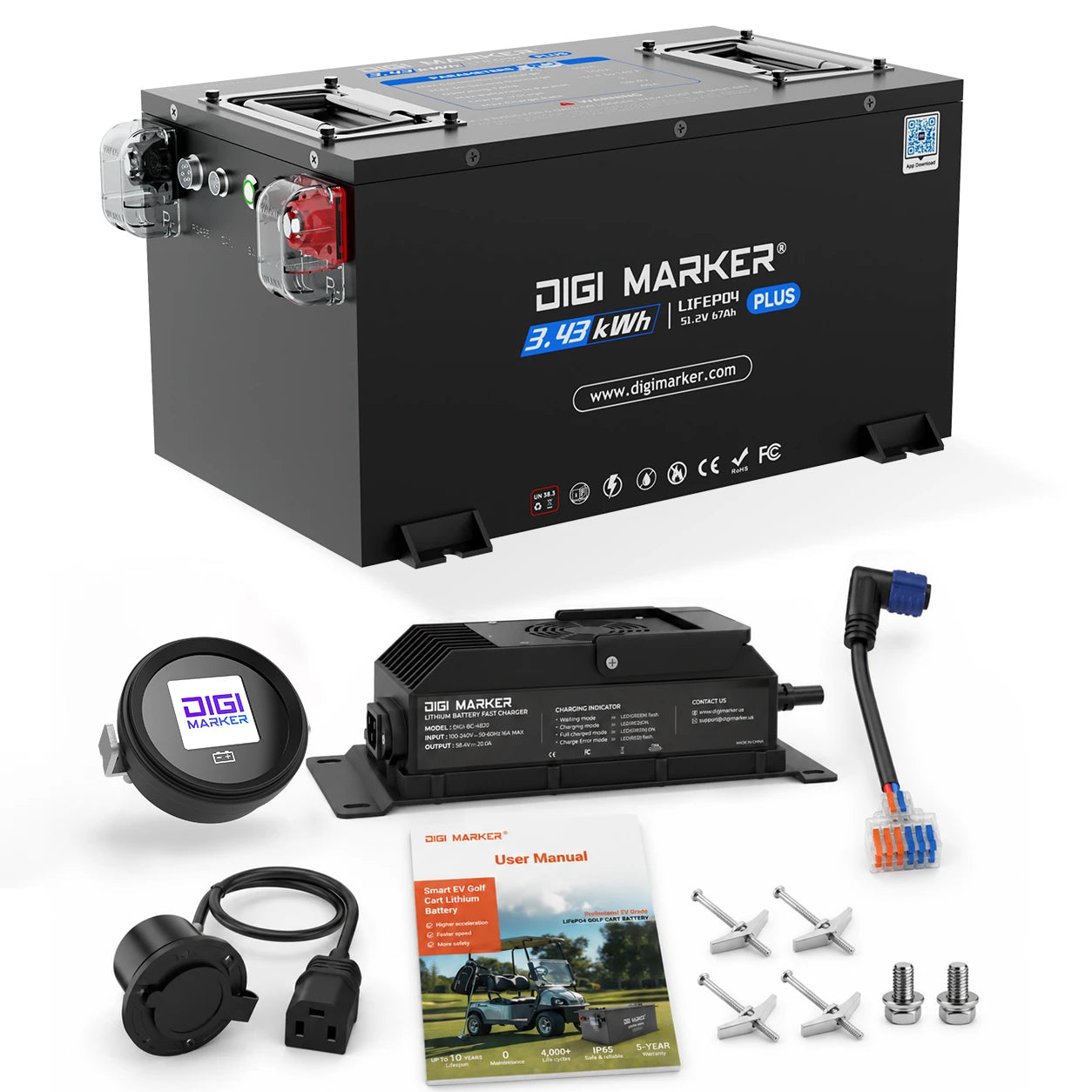

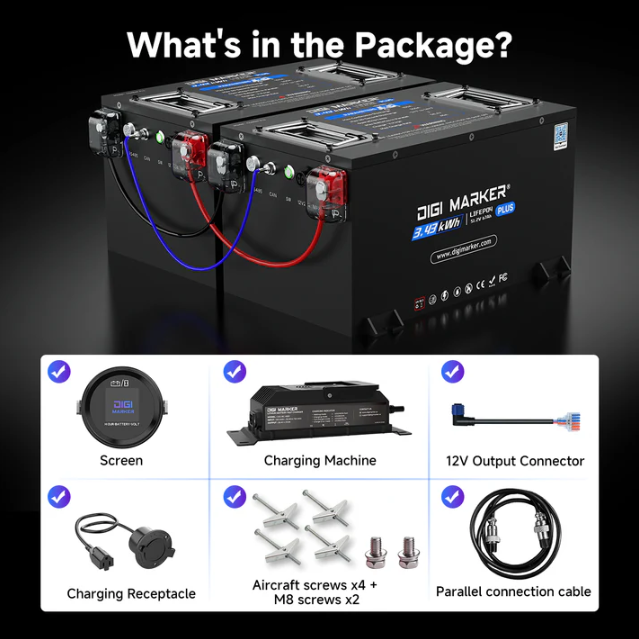

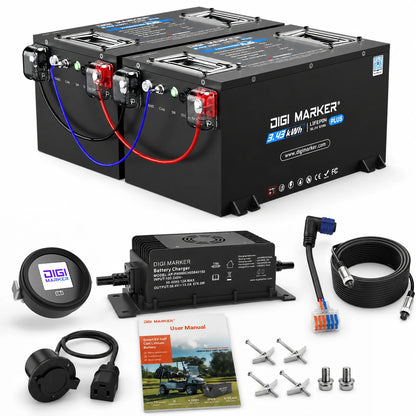

Accessories
1 x 51.2V 100Ah Golf Cart Battery, 1 x 58.4V 20A LiFePO4 Charger, 1 x 2.8in LCD Screen and Monitor cable, Communication Cables, M8 Terminals, Product Manual,charger port,screen holder,extra Switch
Certifications
UN38.3, UL1642, CE, MSDS
