Three lead-acid batteries out, one lithium in

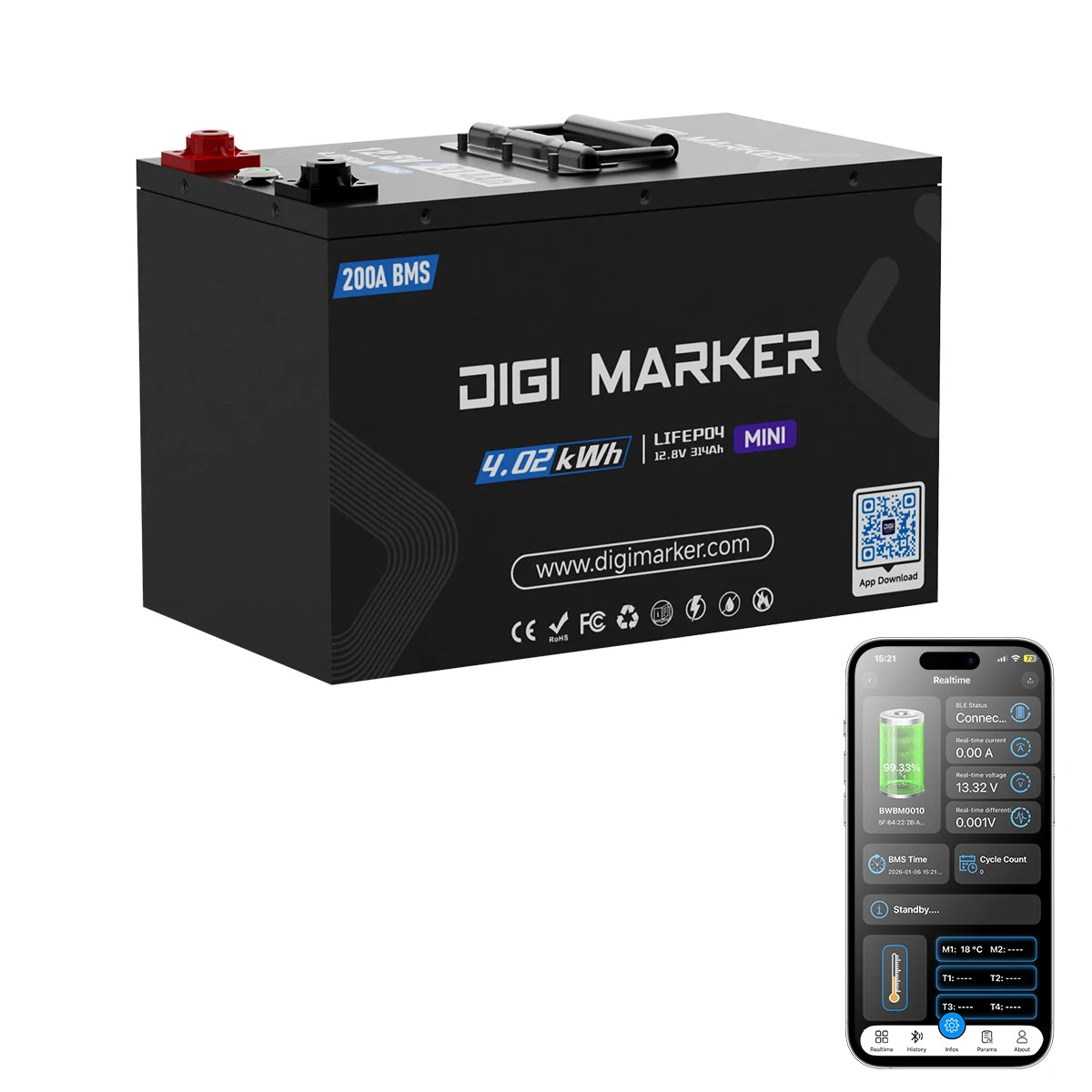

Watch every cell from your phone


How long does 4kWh actually last?


Specs
Capacity & Range
Nominal Voltage
12.8V
Capacity
314Ah
Energy
4.02kWh
Mileage (Est.)
/
Charge & Discharge
Charge Voltage
14.6V
Max Charging Current
100A
Max Continuous Discharging Current
200A
Max 30s Discharge
300A
Max 3s Discharge
600A
Discharge Cut-off Voltage
11.2V
Max Load / Inverter Power
2.56kW
Cell & BMS
Cell Type
Grade A Prismatic
BMS Solution
MOSFET
Internal Resistance
≤5mΩ
Cycle Life
≥4,000 Cycles
Smart Features
Communication
/
Display Type
/
Heating Function
no
Dimensions & Protection

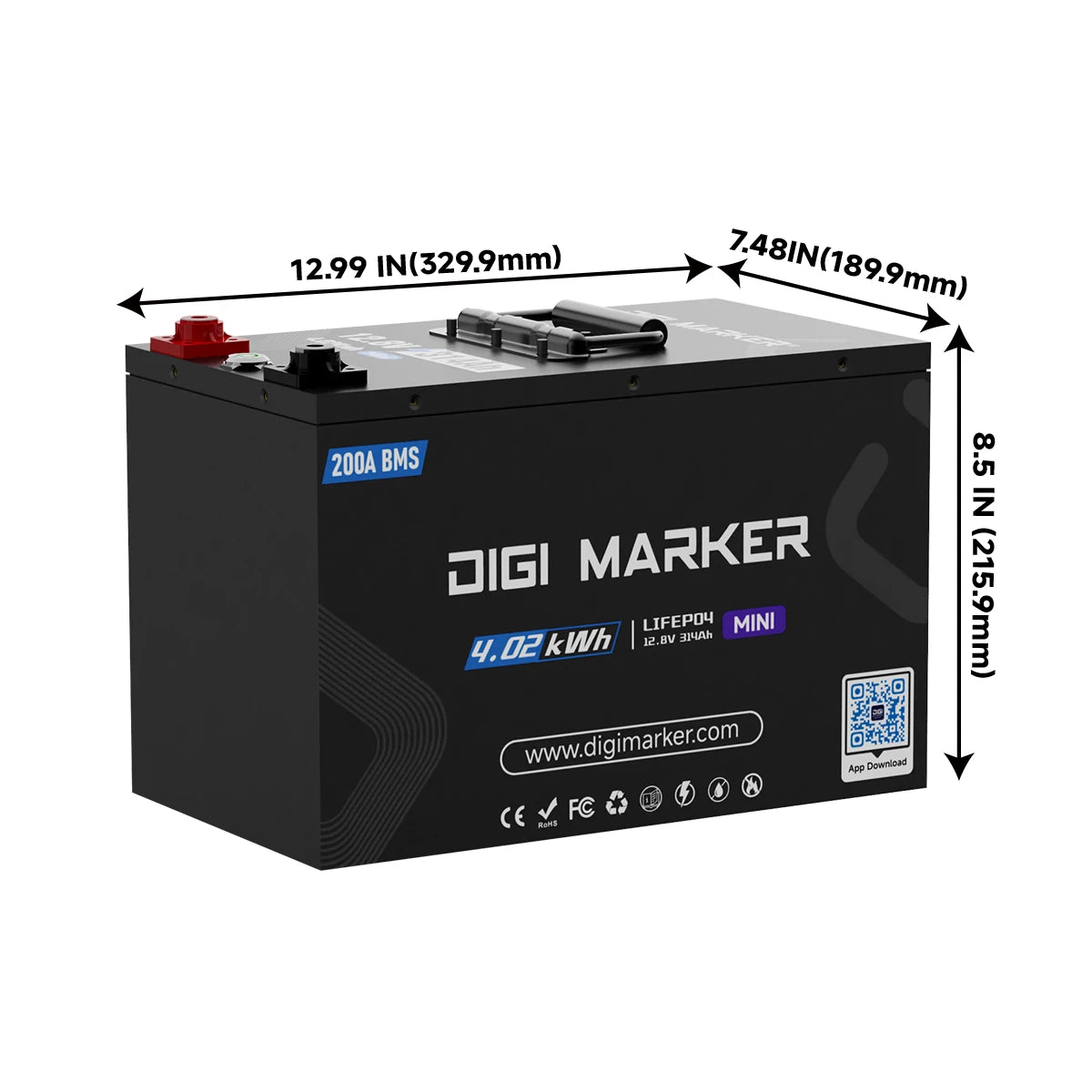

Dimensions (W x H x D)
12.99×7.48×8.5 in
Weight
30Kg
Terminal Type
M8 Stud
Waterproof Class
Battery IP65 / Charger IP67
Operating Temperature Range
Charge: -10°C~45°C
Discharge: -35°C~65°C
Low Temp Discharge: -35°C
Discharge: -35°C~65°C
Low Temp Discharge: -35°C
Safety & Certification
Safety Features
BMS, Over Charge/Discharge, Low/High Temp Cut-off, Over Current, Short Circuit pre-charging, pre-discharging,

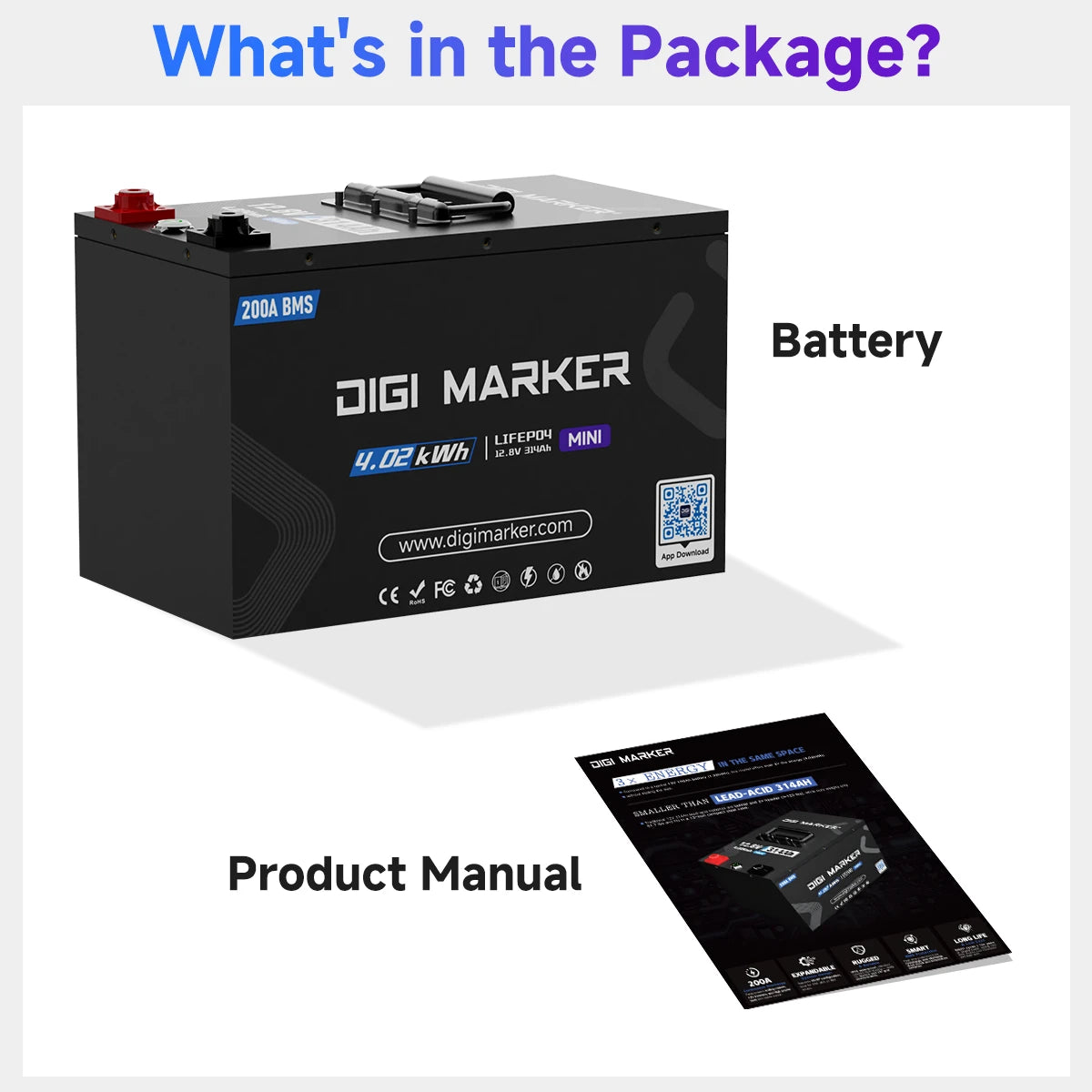

Accessories
1 x 12.8V314Ah Battery
Certifications
UN38.3, UL1642, CE, MSDS
