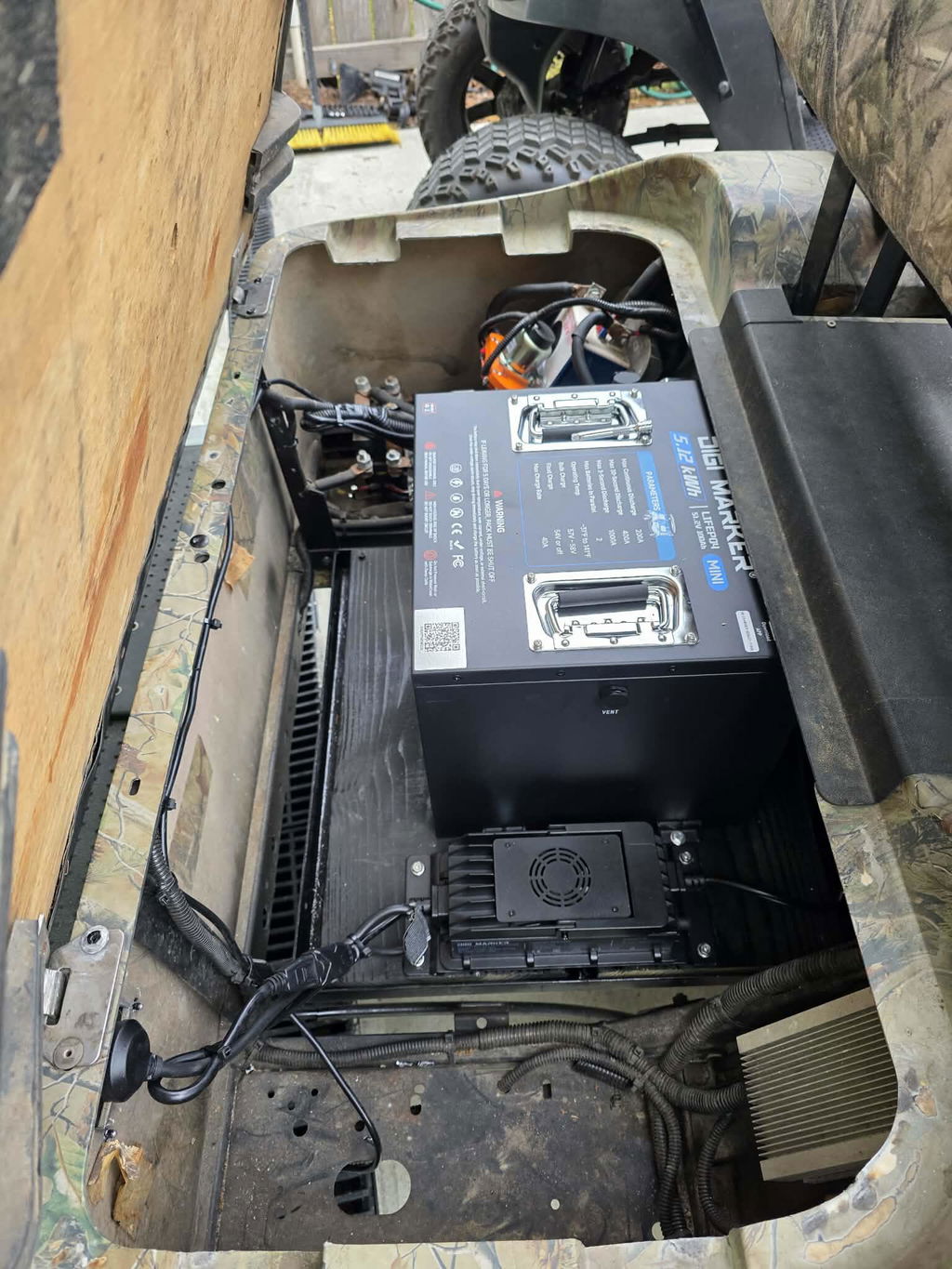

Customer Review Videos
Real installation and test videos from YouTube creators.
Lead-Acid to Lithium: Why Upgrade Your Golf Cart Battery


Compact 7.87-Inch Height for a True Drop-In Fit


Up to 30 Miles Per Charge for 2-Seat Carts


Smart BMS and Bluetooth App Monitoring


Specs
Capacity & Range
Nominal Voltage
51.2V
Capacity
67Ah
Energy
3.43kWh
Mileage (Est.)
30 miles
Charge & Discharge
Charge Voltage
58.4V
Max Charging Current
30A
Max Continuous Discharging Current
150A
Max 30s Discharge
200A
Max 3s Discharge
300A
Discharge Cut-off Voltage
44.8V
Max Load / Inverter Power
7.2kW
Cell & BMS
Cell Type
Grade A Prismatic
BMS Solution
MOSFET
Internal Resistance
≤5mΩ
Cycle Life
≥4,000 Cycles
Smart Features
Communication
Bluetooth(App) / CAN / RS485
Display Type
Round Screen
Heating Function
No
Dimensions & Protection
Dimensions (W x H x D)
15.75×8.66×7.87 in
Weight
24KG / 52.8lbs
Terminal Type
M8 Stud
Waterproof Class
Battery IP65 / Charger IP67
Operating Temperature Range
Charge: -0°C~45°C
Discharge: -35°C~65°C
Low Temp Discharge: -35°C
Discharge: -35°C~65°C
Low Temp Discharge: -35°C
Safety & Certification
Safety Features
BMS, Over Charge/Discharge, Low/High Temp Cut-off, Over Current, Short Circuit; pre-charging, pre-discharging, 300A fuse

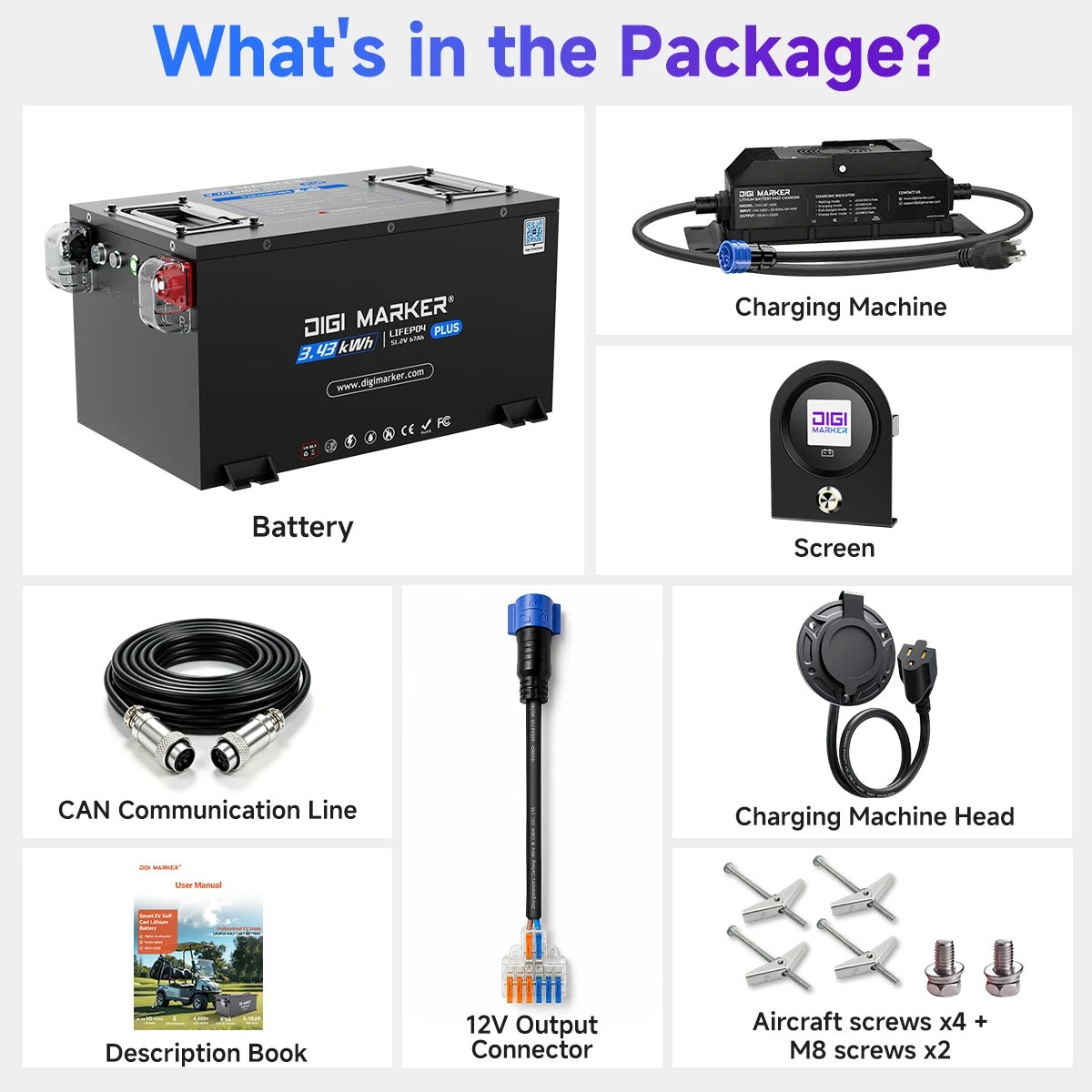

Accessories
1 x 51.2V 67Ah Golf Cart Battery, 1 x 58.4V 15A LiFePO4 Charger, 1 x 2.8in LCD Screen and Monitor cable, Communication Cables, M8 Terminals, Product Manual,charger port,screen holder,extra Switch
Certifications
UN38.3, UL1642, CE, MSDS
